How to Match Colors in Lightroom

In this tutorial, you will learn how to match two photographs colors in Lightroom to create a composite image. We will take advantage of the new Reference View in the Lightroom CC Develop Module to see the images side by side. I chose cold colors to give this final image cool atmosphere.

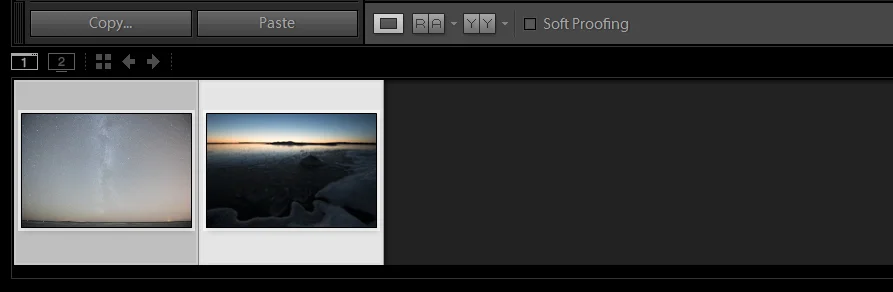

1. Import pictures and Create a collection

Open Lightroom and import the images from File > Import Photographs. Choose the images you want to match the colors and create the composite. Once the pictures are imported, select both of them and create a new collection from the Collections Panel. Having the both images in the same collection helps you to visualize the final image.

If you want to learn how I setup my catalog learn it in this free tutorial

Give the collection a name. I usually have a date first and then a title for the edit.

2. Base Image Edit

The first step is to select the base image and edit it individually. Use shortcut D to get to Develop Module.

2.1. BASIC SETTINGS

The settings depend on what kind of image you are working on and what is the final outlook you want to create. In this step focus on color and light. I always start by reducing saturation and adding some detail to shadows.

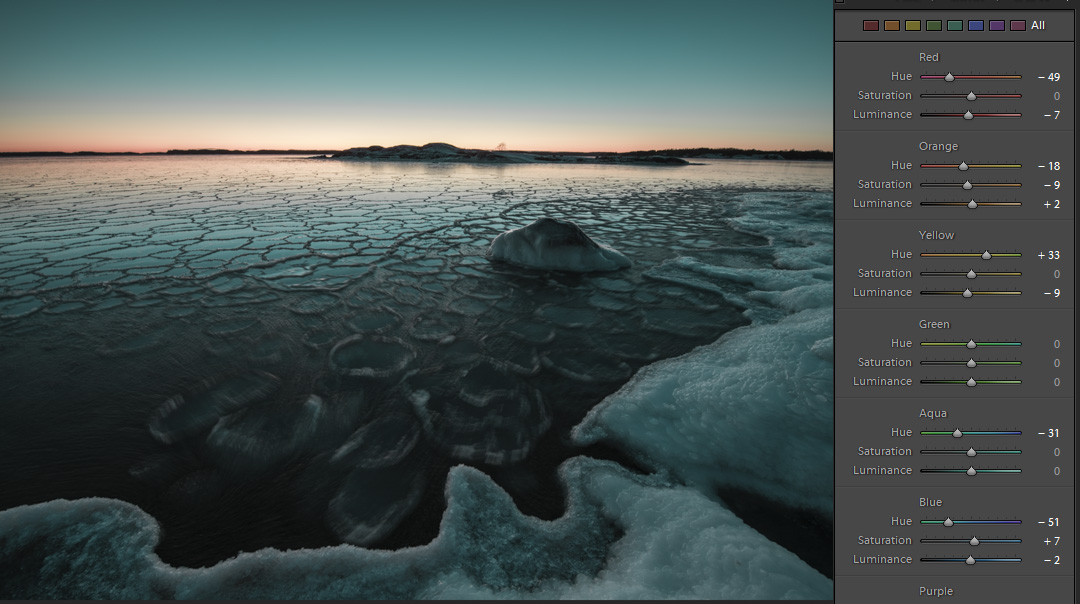

2.2. COLOR

Looking through the color panel, see if there are some color you wish to edit. I tend to leave most of these colors untouched. I personally love the green hue over blue color.

Settings used for this image
Red: Hue -49,  Luminance -7
Orange: Hue -18, Saturation -9, Luminance +2
Yellow: Hue +33, Luminance -9
Aqua: Hue -31
Blue: Hue -51, Saturation +7, Luminance -2

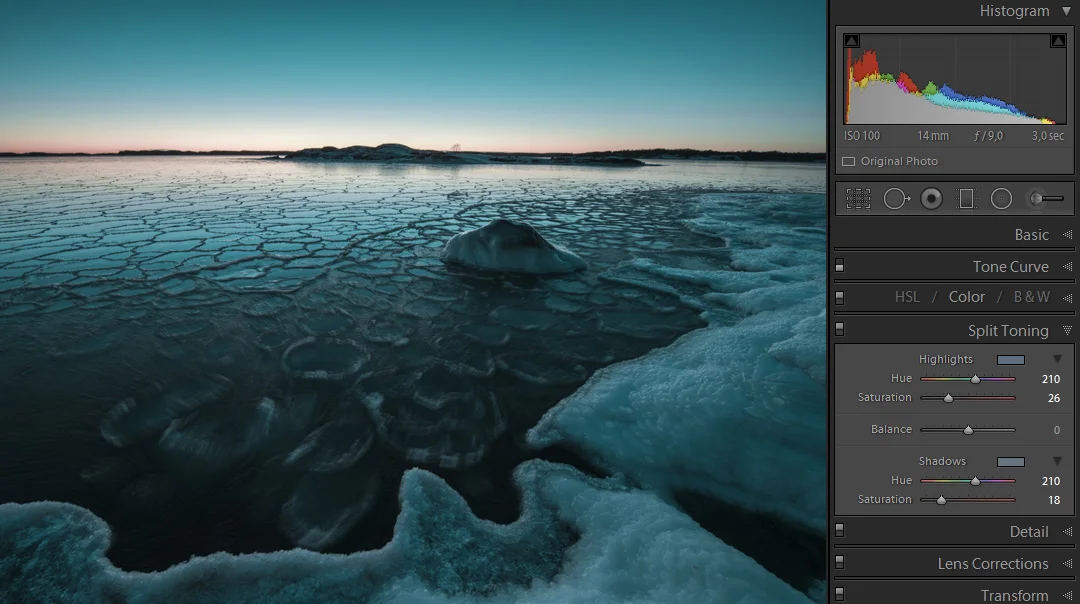

2.3. SPLIT TONING

To enhance the cold atmosphere of the base image add cool Split Toning.

Settings used for this image
Highlights: Hue 210, Saturation 26
Shadows: Hue 210, Saturation 18

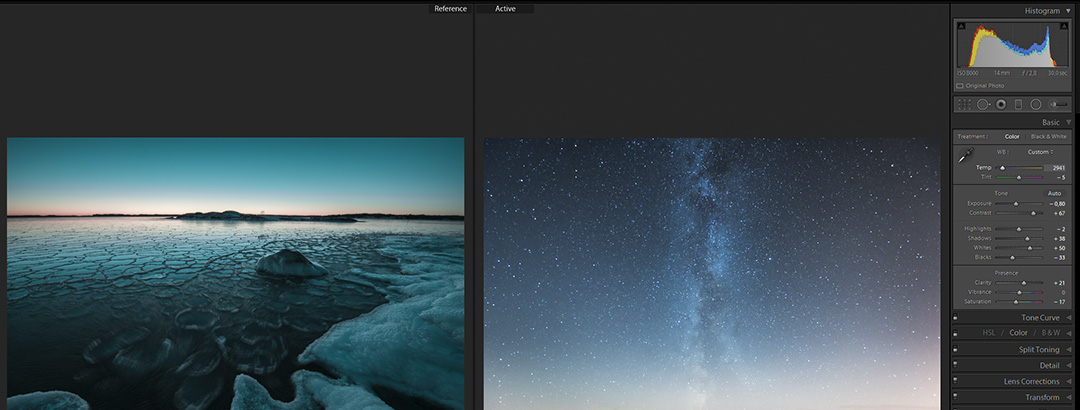

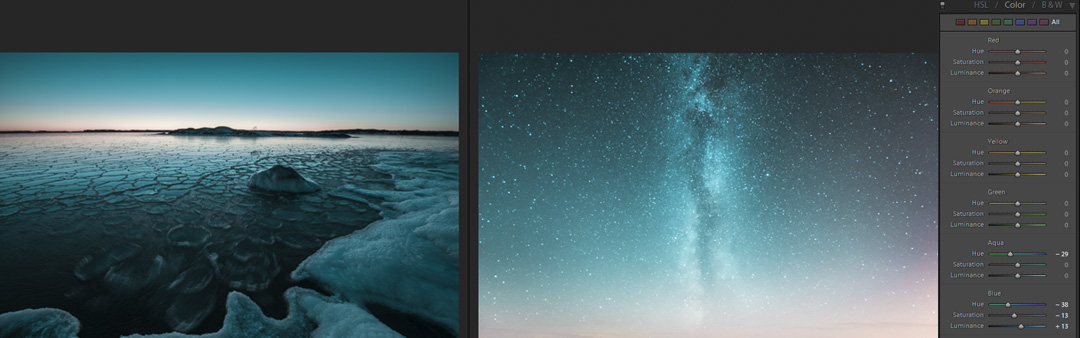

3. Reference View

You can now use Reference view in Lightroom's latest CC update to see the images open in the Develop Module. You can open the Reference View by using shortcut SHIFT+R.

Now you have both images side by side in the Develop Mode. You can change the reference photograph by dragging an image from the filmstrip.


3.1 Basic Settings

Edit the basic settings to make them consistent with the base image. For star photographs, I add contrast and clarity.

3.2 Color

Editing the colors from the Color Panel is the most important step to make the colors work perfectly with the reference image.

Settings used for this image
Aqua: Hue -29
Blue: Hue -38, Saturation -13, Luminance +13


3.3 Split Toning

Similarly to the reference image add some blue tones with Split Toning.

Settings used for this image
Highlights: Hue 210, Saturation 17
Shadows: Hue 210, Saturation 11

The colors look similar thanks to the reference view and the cool thing is that you can fine tune it as much as you need in the Develop mode.

Here is the final image edited in Lightroom and blended together in Photoshop with the techniques in our new Star Photography Composite tutorial.

Star Photography Composite

Star Photography Composite

If you wish to learn how to create composite images, see our new tutorial with step by step process. On sale for limited time!

Dimension of Night

We have had a several beautiful clear nights over the past couple of months here in Finland. I captured this photograph in Meri-Pori, Finland. The photograph is a combination of two pictures. The first taken after sunset and the second one a couple of hours later from the same point of view. This technique is called Vision of Depth, and you can learn more about it in my Star Photography Masterclass

Exif

Nikon D810, Nikkor 14–24 mm f/2.8 G ED, Sirui R-4203L Tripod & K-40X
1st: ISO 100, 30 sec. f/8.0
2nd: ISO 8000, 30 sec. f/2.8

Post-Processing

I used one of my Phase Presets to edit the photographs. First I used an overall look (Balanced) to fit my vision and then after combining the pictures I used another to create the atmospheric look to the image (Hazy - Morning Road).

Dimension of Night - Mikko Lagerstedt - 2015, Meri-Pori, Finland

Nikkor 14–24 mm f/2.8 G ED Review - Night Photography

I have now been using the Nikkor 14–24 mm f/2.8 G ED lens for the last month. As promised, here is an overview and review of the lens for the type of work I do. I have also included some photos taken with it in the daylight to show full-size unedited photographs.

Introduction

Nikkor 14–24 mm f/2.8 G ED ultra-wide-angle lens is made for Nikon full-frame cameras and if calculated, you would need a 9.2–16mm lens on a crop-sensor camera to replicate the angles of view that this 14-24 mm lens gives on FX cameras.

Specification

  • Focal Lenght: 14–24 mm, aperture: 2.8
  • Internal Focusing (IF) system; autofocus with a built-in SWM and manual focus
  • Lens construction: 14 elements in 11 groups inc. 2x ED and 3x aspherical elements and 1x element with Nano Crystal Coat
  • Picture Angle: 114° - 84°
  • Size: 98 x 131.5 mm, Weight: 1 kg

Build Quality

The first thing you notice when you get your hands on the Nikkor 14–24 mm f/2.8 lens is the size and weight. The quality is excellent, in the hand it feels solid and extremely well build. Compared to the Samyang 14 mm f/2.8 - it's a monster. The Nikkor is almost two times bigger and the price tag is over three times more than the Samyang.

The question is: Is it worth the size and price? And for a quick answer, yes! It is a top quality lens. Now of course you have to know what are you going to use it for. My primary usage is star photography and landscapes, and the Nikkor is a fantastic lens for both of these.

Accessories

With the lens, you get a case (Nikon CL-M3) to carry the lens. I occasionally use the case strapped to my Lowepro ProTactic 450AW camera bag if there is not enough space inside. There are no filter threads, so you have to use an external filter holder. In the image below I use a Lee filter system made for the Nikkor 14–24 mm. For star photography, I never use filters.

My gear includes Nikon D810 and an MB-D12 Multi Power Battery Pack. The Nikkor 14–24 mm is perfectly balanced with the setup. For tripod, I use a Sirui R-4203L with a K-40X ball head.

Autofocus

The autofocus is fast and works accurately in the situations I have used it. If you are primarily using the lens for star photography, you might want to learn when it is focused to infinity either manually or with the autofocus in vast landscapes. If there is a small light source in the scenery, the lens can focus to it in most of the cases. In pitch black situations, I recommend using the manual focus. Thanks to an AF-S drive (Silent Wave Motor) autofocus operations are fast and almost silent.

Optics & Sharpness

I have used many different wide-angle lenses in my past, but with the full-frame camera I have used the Nikkor 16–35 mm f/4.0 VR, Samyang 14 mm f/2.8 and the Nikkor 14–24 mm f/2.8 G ED.

Distortion is moderate when compared to the heavily distorted photographs taken with the Samyang 14 mm. The barrel distortion is really easy to fix in Lightroom with the correct lens profile for the Nikkor. The real advantage of the Nikon 14–24 mm f/2.8 against the Samyang is the sharpness of the images overall image quality. Against the Nikkor 16–35 mm f/4.0 the sharpness is better already wide open and the extra stop is essential when you photograph in low light situations.

Example Photographs

You can see a couple of example photographs taken with Nikon D810 and Nikkor 14–24 mm f/2.8. The images shot in RAW and exported with Lightroom CC: View the full-size gallery here.

From corner to corner the sharpness is very good already from wide open. I used two different 14–24 mm f/2.8 lenses and I have also used two Samyang 14 mm f/2.8 lenses. The Samyang focus seems to change in different parts of the image. For example, if the corners of the image are correctly focused the center is not in focus. This is not the case with the Nikkor, once you nail the focus the whole image is razor sharp.

I have gathered below some of my favorite photographs taken with the Nikkor 14–24 mm f/2.8 lens in the past month with the lens. If you are into star photography, make sure to check out my Star Photography Masterclass eBook

Series of photographs captured with the Nikon D810 and Nikkor 14–24 mm f/2.8 G ED

Fog & Stars - Nikon D810 & Nikkor 14–24 mm f/2.8 G ED - ISO 6400, 30 sec. f/2.8 @ 14 mm

Under The Stars - Nikon D810 & Nikkor 14–24 mm f/2.8 - ISO 6400, 14 mm, f/2.8, 30 sec.

Fog & Stars II - Nikon D810 & Nikkor 14–24 mm f/2.8 G ED - ISO 6400, 14 mm, f/2.8, 30 sec.

Koli at Night - Nikon D810 & Nikkor 14–24 mm f/2.8 - ISO 8000, 15 mm, f/2.8, 30 sec.

Glow - Nikon D810 & Nikkor 14–24 mm f/2.8 - ISO 6400, 14 mm, f/2.8, 30 sec.

Koli at Night - Nikon D810 & Nikkor 14–24 mm f/2.8 - ISO 8000, 15 mm, f/2.8, 30 sec.

Searching For Horizon - Nikon D810 & Nikkor 14–24 mm f/2.8, ISO 6400, 14 mm, f/2.8, 30 sec.

Stillness of Night - Nikon D810 & Nikkor 14–24 mm f/2.8 - ISO 6400, 14 mm, f/2.8, 30 sec. & ISO 800, 630 sec.

Star Reflection - Nikon D810 & Nikkor 14–24 mm f/2.8 - ISO 3200, 14 mm, f/2.8, 30 sec.

Road To Aurora - Nikon D810 & Nikkor 14–24 mm f/2.8 - ISO 3200, 14 mm, f/3.2, 15 sec.

Pier to Nowhere - Nikon D810 & Nikkor 14–24 mm f/2.8 - ISO 100, 14 mm, f/10, 200 sec.

Darkness - Nikon D810 & Nikkor 14–24 mm f/2.8 G ED - ISO 100, 24 mm, f/5.6, 400 sec.

Long Sunset - Nikon D810 & Nikkor 14–24 mm f/2.8, ISO 64, 14 mm, f/11, 310 sec.

Verdict

If you are looking for an extreme wide angle lens for a full-frame camera and you do not mind the weight factor, then this is an excellent lens for you. If you are into landscape and star photography I highly recommend the Nikkor 14–24 mm f/2.8. I already see using it 90% of the time on my Nikon D810.

Pros
+ Sharpness
+ Build Quality
+ Focus (fast, silent and accurate)

Cons
- Size (Weight 1kg)
- Need Costly Third-Party Filter System (no screw-on filters)
